MADOX

MADOX

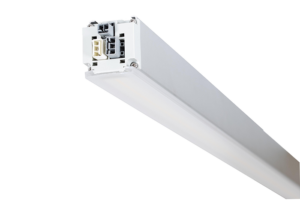

With the integrated plug-in system of the MADOX LED continuous row luminaire in protection class IP20 (dustproof), extremely easy, tool-free installation of the LED luminaires is possible. An efficiency of 160 lumens per watt (lm/W) provides maximum luminous efficacy with minimum energy input.

The 8-pole MADOX produces a continuous shadow-free light from a semi-circular diffuser and offers effective LED technology in 1.5 m and 4.5 m modules (dimensions: 40 x 60 x 1,500/4,500 m – weight: 1.5 kg/ 4.5 kg).

The standard light colour of the LED luminaire is 4,000 K CRI/RA 80. Efficient thermal management through the aluminium housing enables a long useful life of > 100,000 hours. The MADOX has a temperature range of +45 °C to -25 °C and is available in the nondimm version as well as in DALI + momentary-action dimming.

Optional

190 lm/W
16-pole
other light colours: 3,000 K/ 5,000 K/ 6,000 K
DALI

Maximum safety

With the existing splinter protection test (impact resistant IK08 and thus also IK07, IK06, IK05), sensitive areas such as food production or the pharmaceutical industry can also be safely illuminated with LED light strips but also sports halls. Our luminaires are tested for food safety and ball impact safety (DIN 18032).

The HACCP and IFS food approval of the splinter-free IK08 luminaire for food processing companies such as dairies or breweries also expands the area of application of this versatile luminaire.

Each individual luminaire is 100% tested and also bears the ENEC test mark.
